InLED 6.1 | 6.2 | 12.1 |

Article nr: 154950r

E-number:

Description

Fixture for recessed monuting.

White painted galvanised housing and frame RAL 9016.

Fitted to suspended ceiling with T-section. Equipped with microprismatic and foil diffuser (MP) or Opal plate developed for LEDs (OP).

Amplitudedimming on TDC, Touch-Dim or Dali versions, also has an integrated corridor function.
Ballast located inside fixture.

As standard with Halogen-free 2.5 m cable with earthed plug Dimmable (TDC) also equipped with separate
2-wires for control.

IP44 rated when fitted in ceiling.

Lifespan L80 Ta25 70000h (B50)
MacAdam 3 SDCM CRI: >80

Do a simple lighting calculation!

Characteristics

Electrical data

Light distribution

Documents

Product sheet

Position marking 1

Position marking 2

Download pdf

With position marking

File light distribution

Download light distribution file

Dimensions

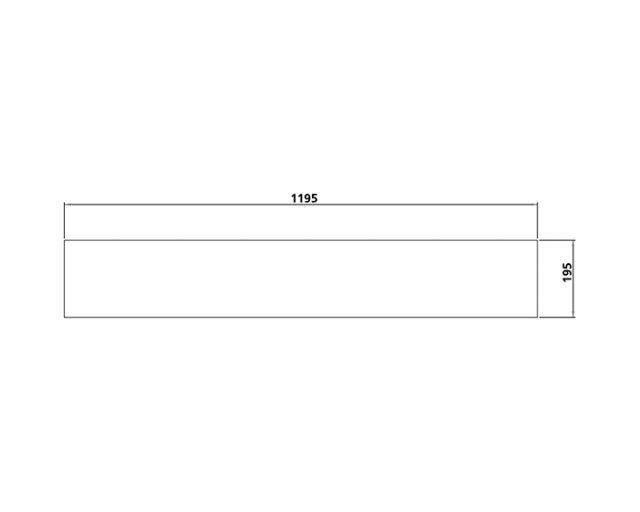

Hygiene shield 1195x195mm

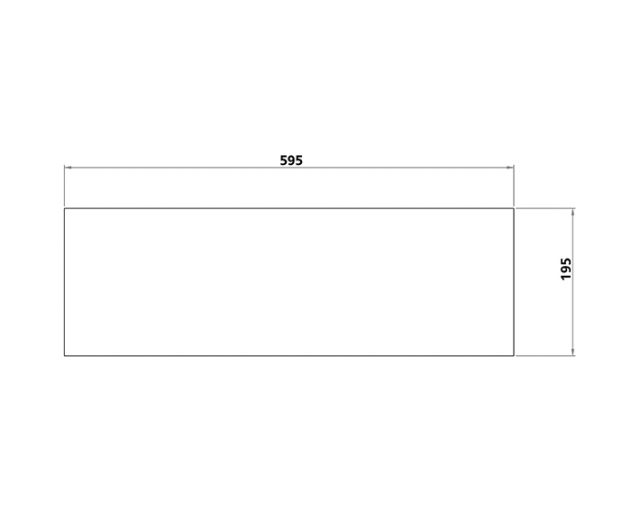

Hygiene shield 595x195mm

Artiklelist

Show all Show less

Type Article nr Lumen Power File light distribution File light Light calculation Calculation

InLED 12.1 MP 830 154966 1630 20

InLED 12.1 MP 840 154970 1700 20

InLED 12.1 MP TDC 830 154866 1630 20

InLED 12.1 MP TDC 840 154870 1700 20

InLED 12.1 OP 830 154968 1980 20

InLED 12.1 OP 840 154972 2070 20

InLED 12.1 OP TDC 830 154868 1980 20

InLED 12.1 OP TDC 840 154872 2070 20

InLED 12.2 8000 OP 830 154933 7800 60

InLED 12.2 8000 OP 840 154939 8120 60

InLED 12.2 8000 OP TDC 830 154933-TD 7800 60

InLED 12.2 8000 OP TDC 840 154939-TD 8060 60

InLED 12.2 MP 830 154930 4340 36

InLED 12.2 MP 840 154932 4520 36

InLED 12.2 MP TDC 830 154830 4340 36

InLED 12.2 MP TDC 840 154832 4520 36

InLED 12.2 OP 830 154934 5000 36

InLED 12.2 OP 840 154936 5100 36

InLED 12.2 OP TDC 830 154834 5000 36

InLED 12.2 OP TDC 840 154836 5100 36

InLED 6.1 MP 830 154950 790 10

InLED 6.1 MP 840 154956 820 10

InLED 6.1 MP TDC 830 154850 760 10

InLED 6.1 MP TDC 840 154856 820 10

InLED 6.1 OP 830 154954 960 10

InLED 6.1 OP 840 154958 990 10

InLED 6.1 OP TDC 830 154854 890 10

InLED 6.1 OP TDC 840 154858 900 10

InLED 6.2 MP 830 154908 2020 19

InLED 6.2 MP 840 154909 2100 19

InLED 6.2 MP TDC 830 154808 2020 19

InLED 6.2 MP TDC 840 154809 2100 19

InLED 6.2 OP 830 154914 2350 19

InLED 6.2 OP 840 154916 2450 19

InLED 6.2 OP TDC 830 154814 2350 19

InLED 6.2 OP TDC 840 154816 2450 19

E-nr:	7010844, 7010845, 7010846, 7010847, 7010848, 7010849, 7010851, 7010854, 7010855, 7010857, 7010858, 7010859, 7010869, 7010883, 7010884, 7010886, 7010887, 7010891, 7010892, 7010893, 7010894, 7010895, 7010896, 7010897, 7010898, 7016931, 7016932, 7016933, 7016934, 7054077, 7054160, 7054163, 7054166, 7054167, 7054168, 7054169
Lumen:	1630, 1700, 1980, 2020, 2070, 2100, 2350, 2450, 4340, 4520, 5000, 5100, 760, 7800, 790, 8060, 8120, 820, 890, 900, 960, 990
Power:	10 W, 19 W, 20 W, 36 W, 60 W
CCT, Kelvin:	830, 840
Weight:	2,5, 3, 3,5, 4
Width:	195, 95
Height:	53
Length:	1195, 595
Energyclass (LED module):	C, D

MCB B10A:	15, 18, 20, 23
MCB B16A:	24, 28, 33, 38
MCB C10A:	24, 28, 33, 38
MCB C16A:	40, 48, 56, 64
Start W:	14, 15, 22, 53
Time μs:	230, 250, 275
