Pixel
Article nr:
758148r
E-number:
Campaign
Campaign:
Quantity:
0
Campaign starts:
Campaign stops:
- Description
-
Modern sleek floodlight for a wide variety applications.
Diecasted aluminium housing with on the outside.
Painted RAL 7039 anthracite grey with UV-resistant polyester powder coating.

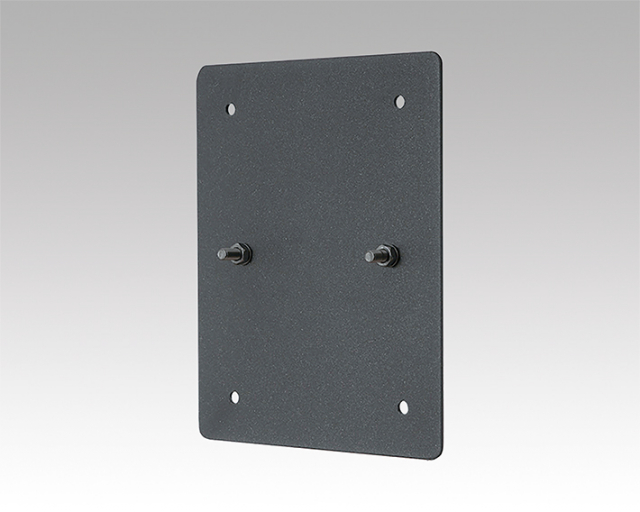

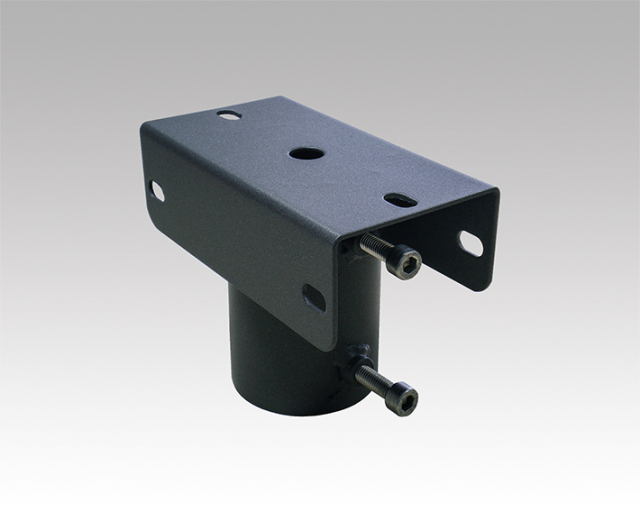

4 mm tempered glass with foldable lid locked by aluminium clips.Mounting via adjustable bracket. 60 mm pole-top adapter or wall bracket available as accessories.
Pole-top (A) max. two luminaires.Connection via gland with ventilated membrane.
Driver integrated into luminaire.
Equipped with 6kV surge protector.Asymmetrical light distribution (AS) or street light optic (ST).
Available in other light colours and also with Dali dimming.
Colourtemperature 4000K.
Lifespan L80 Ta25 50000h (B50).
MacAdam 4 SDCM CRI: >70Do a simple lighting calculation! - Characteristics
- Electrical data
- Light distribution
-
AS
ST
- Documents
-
File light distribution
Dimensions
Artiklelist
Show all Show less
Type
Article nr
Lumen
Power
Pixel LED 10000 AS
758144
12030
105
Pixel LED 10000 ST
758152
10430
101
Pixel LED 13000 AS
758146
16280
140
Pixel LED 13000 ST
758154
12890
135
Pixel LED 4000 AS
758140
4280
35
Pixel LED 4000 ST
758148
3340
35
Pixel LED 7000 AS
758142
8330
70
Pixel LED 7000 ST
758150
6480
67
