Spaze in the group Categories / Ceiling luminaires at Nokalux (556001r)

Spaze

Ljuskurva
54 IK10 Ner Ja CE-markning D-markning F-markning Ja Ja
Delivery time:
1-2 working days
Article nr: 556001r
E-number:

Campaign

Campaign:
Quantity:
0
Campaign starts:
Campaign stops:
Plafoniere for ceiling or wall-mounting.
Two sizes 320 respective 400 mm diameter.
  • Description
  • Description: Housing made of impactresistant Polycatbonate (IK 10).
    Ingressclass IP 54 and isolationclass II.

    Glareprotection: Flat opalized diffusor of polycarbonate.

    Mounting: Housing twists into ceilingpart.

    Connection: In ceilingpart. Terminalblock with double poles. Possibility to use surfacemounted cable.

    Control: All versions have adjustable colortemperature in fixed steps 3000, 4000 och 5000 K and also adjustable lumen output in four steps. Changes is made through dipswitches inside the luminaire.

    Diameter 320:
    Available in on/off and 2 different sensoralternatives, HF sensor placed behind the diffusor.
    Alternatively PIR-sensor with Mesh technology via Bluetooth. With use by an mobileapp (Koolmesh) you can group luminaires and many parameters can be programmed.

    Diameter 400:
    Have a DALI 2 driver as standard. Also decorative uplight.

    Lifespan L80 Ta25 >100 000h (B50)
    MacAdam 3 SDCM CRI: >80 I CE
    Energyclass (LED module):D
    Class II
    Do a simple lighting calculation!
  • Characteristics
  • E-nr: 7027275, 7027276, 7027277, 7027278
    Lumen: 1115, 1154, 1672, 2390, 2495, 2982
    Power: 10 W, 15 W, 20 W, 24 W
    CCT, Kelvin: 830, 840
    Diameter: 320, 400
    : 0
    Light distribution: Nerljus
    Weight: 3
    Height: 62
    Energyclass (LED module): D
    MCB B10A: 21, 42, 43
    MCB B16A: 33, 68, 69
    MCB C10A: 35, 71, 72
    MCB C16A: 114, 116, 56
    Start W: 10, 18, 19
    Time μs: 200, 224, 32
  • Electrical data
  • Light distribution
  • Documents
  • Product sheet

    File light distribution

    Dimensions

airc-logo
1-2 working days

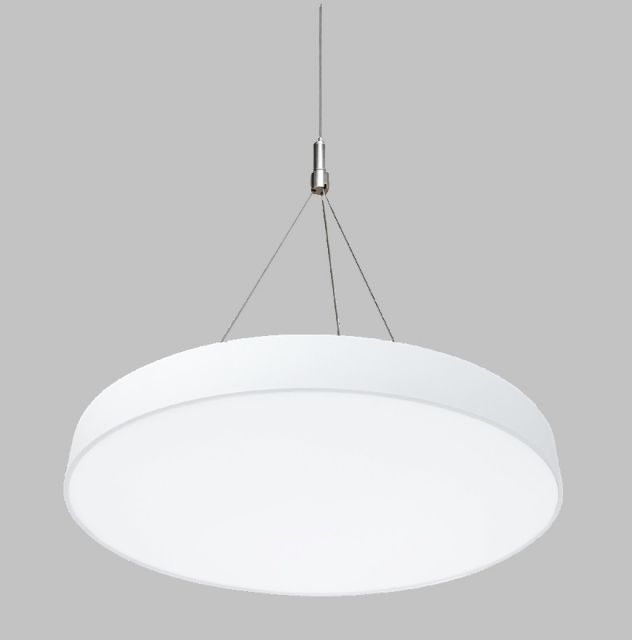

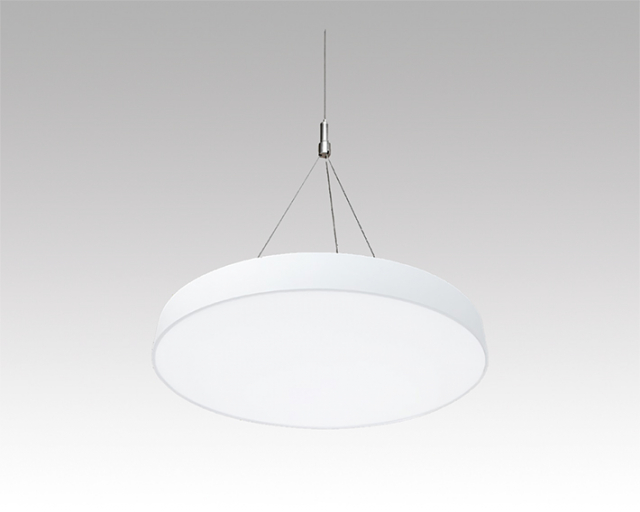

Accessories

Artiklelist

Show all Show less

Type Article nr Lumen Power File light distribution File light Light calculation Calculation
Spaze 320 1000 830 556001_15472 1115 10 Spaze 320 1000 830
Spaze 320 1000 840 556001_15481 1115 10 Spaze 320 1000 840
Spaze 320 2500 830 556001_15459 2390 20 Spaze 320 2500 830
Spaze 320 2500 840 556001_15450 2390 20 Spaze 320 2500 840
Spaze 320 Sensor HF 1000 830 556002_15515 1115 10 Spaze 320 Sensor HF 1000 830
Spaze 320 Sensor HF 1000 840 556002_15506 1115 10 Spaze 320 Sensor HF 1000 840
Spaze 320 Sensor HF 2500 830 556002_15524 2390 20 Spaze 320 Sensor HF 2500 830
Spaze 320 Sensor HF 2500 840 556002_15533 2390 20 Spaze 320 Sensor HF 2500 840
Spaze 320 Sensor PIR BT 1000 830 556003_15551 1154 10 Spaze 320 Sensor PIR BT 1000 830
Spaze 320 Sensor PIR BT 1000 840 556003_15569 1154 10 Spaze 320 Sensor PIR BT 1000 840
Spaze 320 Sensor PIR BT 2500 830 556003_15542 2495 20 Spaze 320 Sensor PIR BT 2500 830
Spaze 320 Sensor PIR BT 2500 840 556003_15560 2495 20 Spaze 320 Sensor PIR BT 2500 840
Spaze 400 Dali 1500 830 556004_15436 1672 15 Spaze 400 Dali 1500 830
Spaze 400 Dali 1500 840 556004_15418 1672 15 Spaze 400 Dali 1500 840
Spaze 400 Dali 3000 830 556004_15427 2982 24 Spaze 400 Dali 3000 830
Spaze 400 Dali 3000 840 556004_15409 2982 24 Spaze 400 Dali 3000 840
