IR 52 LED 11000 840 TDC  in the group  at Nokalux (152311)

IR 52 LED 11000 840 TDC

Ljuskurva
Ner CE-markning D-markning F-markning
Delivery time:
1-2 working days
Article nr: 152311
E-number: 7013770

  • Description

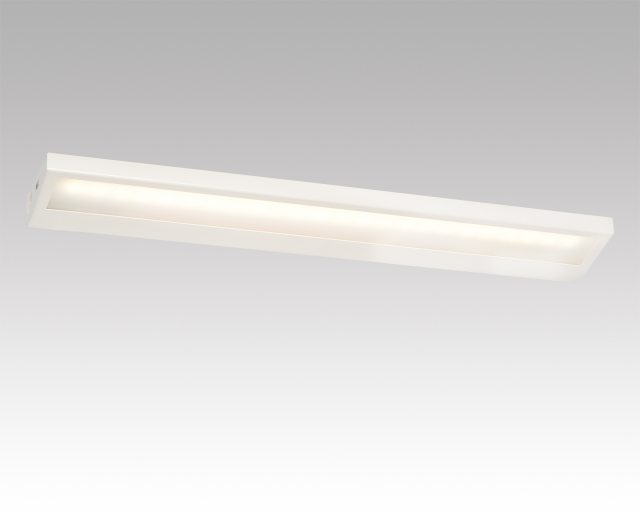

  • Sportinghall fixture for demanding installations with demanding anti-glare requirements.

    Housing made from powdercoated Aluzink RAL 9010. Foldable reinforced white louvre.
    Can also be supplied without louvre.

    Reflectors made from metallised purealuminium and diffusionplate.
    Mounted flush to ceiling, by wires or tube with tubular mount or adjustable ceilingbrackets.

    Connection via ends. Equipped with 2.5 mm² throughwiring 5- or 7-wire.

    Dimmable (TDC), push-button or Dali and also has integrated corridorfunction.

    Lifespan L80 Ta25 100000h (B50)
    MacAdam 3 SDCM CRI >80

    Do a simple lighting calculation!
  • Characteristics
  • E-nr: 7013770
    Lumen: 11250
    Power: 96 W
    CCT, Kelvin: 840
    CC dimensions: 1050
    Weight: 6,4
    Width: 271
    Height: 72
    Length: 1182
    Energyclass (LED module): D
    MCB B10A: 7
    MCB B16A: 12
    MCB C10A: 12
    MCB C16A: 20
    Start W: 5,1
    Time μs: 760
  • Electrical data
  • Light distribution
  • Documents
  • Product sheet

    File light distribution

    Dimensions
