InLens 6.6Delivery time:
Out of stock
Article nr: 156360r

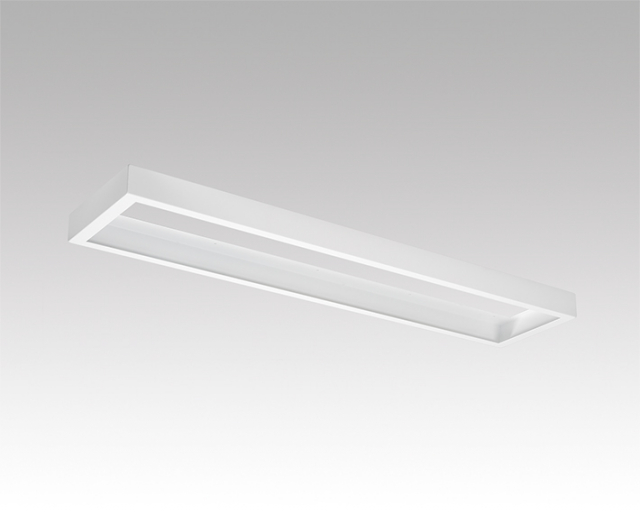

Luminaire for recessed mounting. Equipped with lens technology for highest light output and minimal glare.
Luminaire for recessed mounting.
Equipped with lens technology for highest light output and minimal glare.
Sheet metal housing. Front painted white RAL 9016 as standard.
Recessed lenses mounted in square louvres, white or black. This provides very good glarecontrol and high efficiency.
Installation in ceiling 600 module with visible T-profile. Accessories are available for hidden T-profile.
Supplied with 2.5m connectioncable with earthed plug. Dimmable version (TDC) is equipped with 5-wire 2.5 m. Both is halogen-free.
Connection terminal on top of fixture.
TDC: Amplitudedimming för Touch-dim, DALI and possibility for Corridorfunction. Integrated driver.
Sensorsystem with daylightcontroll programmable through app. The sensor can also communicate wireless with several units.
Wireless switches can also be integrated in the system.
Tunable white (TW)
Black front RAL 9005
Louvre in inverted colour (to front)
Lifespan L80 Ta25 72000h (B50)
MacAdam 3 SDCM
CRI:>80 I CE
E-nr: 7021443, 7021444, 7021445, 7021446, 7021447, 7021448, 7021449, 7021450, 7021451, 7021452, 7021453, 7021454 Lumen: 1430, 1490, 4270, 4440 Power: 12 W, 32 W CCT, Kelvin: 830, 840 Weight: 4.4, 4.5 Width: 594 Height: 40 Length: 594 MCB B10A: 13, 15, 19, 21 MCB B16A: 21, 24, 30, 33 MCB C10A: 21, 24, 30, 33 MCB C16A: 35, 40, 51, 56 Start W: 15,1, 19,4, 20,4, 21 Time μs: 195, 200, 230, 280
- Electrical data
- Light distribution
File light distribution
Out of stock
Show all Show less
Type Article nr Lumen Power File light distribution File light
