InLED 6.6

Article nr: 154946-r

E-number:

Description

Fixture for recessed mounting.

White painted galvanised housing and frame RAL 9016.

Fit to 600 modular ceiling with T-profile.

Available as accessory:
frame for extra recessed (+ 50 mm) which provides a shaft of light effect.

Equipped with microprismatic and foil diffuser (MP) or Opal plate developed for LED (OP).

Amplitudedimming on TDC, Touch-Dim or Dali versions, also has an integrated
corridor function. Ballast located inside fixture. As standard with Halogen-free 2.5 m cable with earthed plug.
Dimmable (TDC) also equipped with separate 2-wires for control.

IP44 rated when fitted in ceiling.

AirC:
Sensorsystems with daylightcontrol that can be programmed via app.
The sensor can also communicate wirelessly with more sensors.
Wireless switches can be integrated in this system.

Lifespan L80 Ta25 80000h (B50)
InLED 6.6 8000 has 70000h.
MacAdam 3 SDCM CRI: >80

Do a simple lighting calculation!

Characteristics

Electrical data

Light distribution

MP4

OP4

Documents

Product sheet

Position marking 1

Position marking 2

Download pdf

With position marking

File light distribution

Download light distribution file

Dimensions

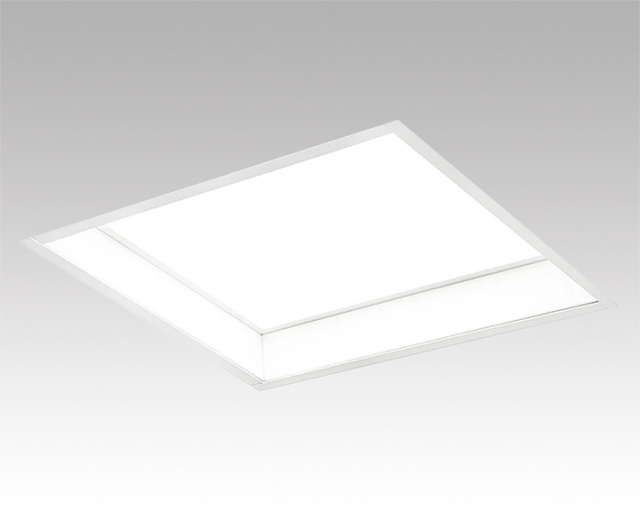

Extra recessed frame (+ 50 mm)

Hygiene shield 595 x 595

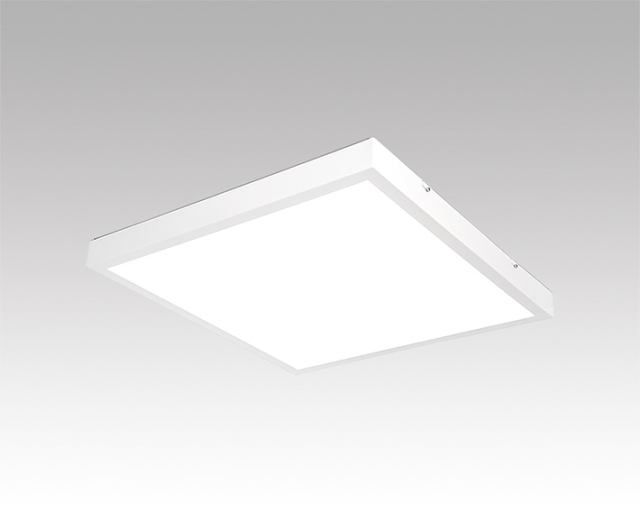

Surface mounting external frame

Switch AirC SwitchDim 1 pole

Artiklelist

Show all Show less

Type Article nr Lumen Power File light distribution File light Light calculation Calculation

InLED 6.6 8000 OP4 830 154953 8100 59

InLED 6.6 8000 OP4 840 154976 8440 59

InLED 6.6 8000 OP4 TDC 830 154978 8100 59

InLED 6.6 8000 OP4 TDC 840 154974 8440 59

InLED 6.6 MP4 830 154941 4369 34

InLED 6.6 MP4 840 154942 4550 34

InLED 6.6 MP4 AirC 830 154987 4369 34

InLED 6.6 MP4 AirC 840 154988 4550 34

InLED 6.6 MP4 TDC 830 154841 4369 34

InLED 6.6 MP4 TDC 840 154842 4550 34

InLED 6.6 MPR 830 154947 3850 34

InLED 6.6 MPR 840 154948 4010 34

InLED 6.6 MPR AirC 830 154992 3850 34

InLED 6.6 MPR AirC 840 154993 4010 34

InLED 6.6 MPR TDC 830 154847 3850 34

InLED 6.6 MPR TDC 840 154848 4010 34

InLED 6.6 OP4 830 154945 4920 34

InLED 6.6 OP4 840 154946 5130 34

InLED 6.6 OP4 AirC 830 154985 4920 34

InLED 6.6 OP4 AirC 840 154986 5120 34

InLED 6.6 OP4 TDC 830 154845 4920 34

InLED 6.6 OP4 TDC 840 154846 5120 34

InLED 6.6 OPR 830 154951 4390 34

InLED 6.6 OPR 840 154952 4570 34

InLED 6.6 OPR AirC 830 154990 4390 34

InLED 6.6 OPR AirC 840 154991 4570 34

InLED 6.6 OPR TDC 830 154851 4390 34

InLED 6.6 OPR TDC 840 154852 4570 34

E-nr:	7010829, 7010832, 7010833, 7010834, 7010835, 7010841, 7010842, 7010843, 7015420, 7015423, 7015428, 7015429, 7016845, 7016846, 7016847, 7016848, 7018058, 7018059, 7018060, 7018061, 7019484, 7054170, 7054171, 7054172, 7054173, 7054174, 7054175, 7054176
Lumen:	3850, 4010, 4369, 4390, 4550, 4570, 4920, 5120, 5130, 8100, 8440
Power:	34 W, 59 W
CCT, Kelvin:	830, 840
Weight:	4, 4,5
Width:	595
Height:	53
Length:	595
Energyclass (LED module):	C, D

MCB B10A:	11, 14, 15
MCB B16A:	18, 22, 24
MCB C10A:	18, 22, 24
MCB C16A:	30, 37, 40
Start W:	10, 19, 22, 7
Time μs:	275, 280, 36, 62
