Antares in the group  at Nokalux (758502r)


IK10 Ja CE-markning D-markning F-markning
Delivery time:
1-2 working days
Article nr: 758502r


Campaign starts:
Campaign stops:
  • Description
  • Modern sleek floodlight for mounting at great heights.

    Diecasted aluminium housing with coolingfins on the outside.
    Painted RAL 7039 anthracite grey with UV-resistant polyester powder coating.
    4 mm tempered glass with foldable lid locked by aluminium clips.

    Mounting via adjustable bracket.

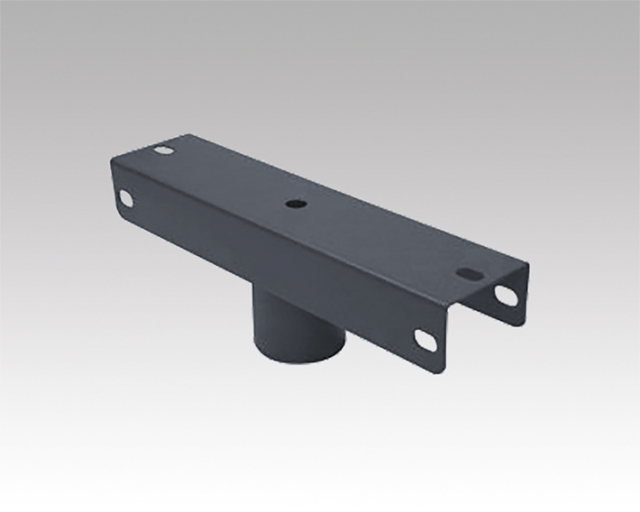

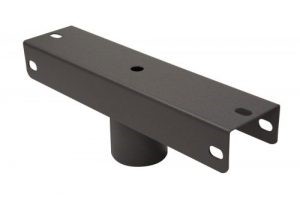

    60 mm pole-top adapter available as accessory.

    Connection via gland with ventilated membrane.
    Driver integrated into fixture.
    Equipped with 6kV surgeprotector.
    Asymmetrical lightdistribution (AS).

    Available in other light colours and also with Dali dimming.

    Colourtemperature 4000K.
    Lifespan L80 Ta25 50000h (B50)
    MacAdam 4 SDCM CRI: >70

    Do a simple lighting calculation!
  • Characteristics
  • E-nr: 7764102, 7764103
    Lumen: 20630, 33000
    Power: 168 W, 269 W
    CCT, Kelvin: 840
    Area: 0,265 m2
    Weight: 21
    Energyclass (LED module): E
    MCB B10A: 3, 5
    MCB B16A: 5
    MCB C10A: 5, 7
    MCB C16A: 10, 8
    Start W: 140, 350
    Time μs: 150, 80
  • Electrical data
  • Light distribution
  • Documents
  • Product sheet

    File light distribution


1-2 working days



Show all Show less

Type Article nr Lumen Power File light distribution File light Light calculation Calculation
Antares LED 17000 AS 758502 20630 168 Antares LED 17000 AS
Antares LED 27000 AS 758505 33000 269 Antares LED 27000 AS
