Vekter 1 -  2 in the group Categories / Wall luminaries at Nokalux (LI301001-02r)

Vekter 1 - 2

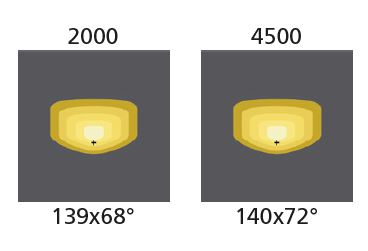

Ljuskurva
65 IK08 Ner CE-markning D-markning F-markning
Delivery time:
Stocked
Article nr: LI301001-02r
E-number:

Campaign

Campaign:
Quantity:
0
Campaign starts:
Campaign stops:

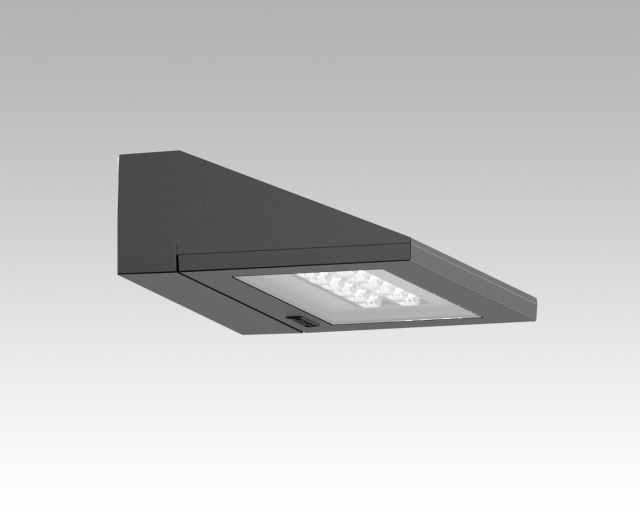

Flexible wall-mounted floodlighting and area luminaires. Sleek, angular, technical and powerful professional lighting solutions.
  • Description
  • - Die-cast aluminium housing and frame
    - Pre-treated before powder coating ensuring high corrosion resistance
    - Single cable entry or two cable entries for through wiring upon request
    - Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
    - Durable silicone rubber gasket
    - High-efficiency PMMA lens
    - Clear toughened glass
    - Integral control gear
    - Optional surface mounting box for easy wiring or conduit connection when wiring from behind is not possible

  • Characteristics
  • E-nr: 7705139, 7705140, 7705141, 7705142
    Lumen: 2050, 2300, 4510, 4820
    Power: 20 W, 37 W
    CCT, Kelvin: 830, 840
    Light distribution: Downlight
    Weight: 3,2, 4,9
    Width: 260
    Height: 80, 95
    MCB B10A: 31
    MCB B16A: 50
    MCB C10A: 52
    MCB C16A: 85
    Start W: 5
    Time μs: 50
  • Electrical data
  • Light distribution
  • Documents
  • Product sheet

    File light distribution

    Dimensions

airc-logo
Stocked

Accessories

Artiklelist

Show all Show less

Type Article nr Lumen Power File light distribution File light
Vekter 1 2000 830 AS LI301001-02 2050 20
Vekter 1 2000 840 AS LI301002-02 2300 20
Vekter 2 4500 830 AS LI302001-02 4510 37
Vekter 2 4500 840 AS LI302002-02 4820 37
