Gino 1 in the group Categories / Wall luminaries at Nokalux (LI131001-02r)

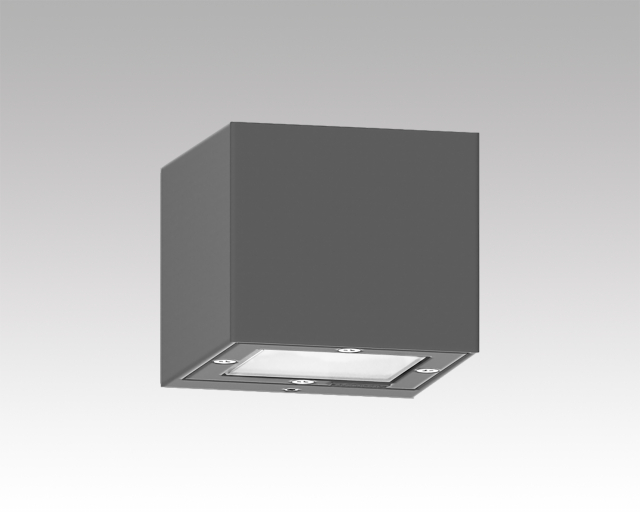

Gino 1

Ljuskurva
65 IK07 Uppner CE-markning D-markning F-markning
Delivery time:
Stocked
Article nr: LI131001-02r
E-number:

Campaign

Campaign:
Quantity:
0
Campaign starts:
Campaign stops:
Façade-mounted building and area lighting range. Sleek, compact and expansive luminaire family with lighting packages and optics to address any need.
  • Description
  • - Die-cast aluminium housing and frame
    - Pre-treated before powder coating ensuring high corrosion resistance
    - Single cable entry
    - Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
    - Durable silicone rubber gasket
    - Clear or frosted toughened glass
    - Integral control gear
    - Optional surface mounting box for easy wiring or conduit connection when wiring from behind is not possible

  • Characteristics
  • E-nr: 7704833, 7704834
    Lumen: 440, 470
    Power: 8 W
    CCT, Kelvin: 830, 840
    Weight: 1
    Light distribution: Up/Downlight
    Width: 91
    Height: 81
    MCB B10A: 90
    MCB B16A: 144
    MCB C10A: 150
    MCB C16A: 240
    Start W: 7
    Time μs: 133
  • Electrical data
  • Light distribution
  • /
  • Documents
  • Product sheet

    File light distribution

    Dimensions

airc-logo
Stocked

Accessories

Artiklelist

Show all Show less

Type Article nr Lumen Power File light distribution File light
Gino 1 500 830 SY LI131001-02 440 8
Gino 1 500 840 SY LI131002-02 470 8
