Cinati in the group Categories / Wall luminaries at Nokalux (LI101001-02r)

Cinati

Ljuskurva
65 IK08 Ner CE-markning D-markning F-markning
Delivery time:
Stocked
Article nr: LI101001-02r
E-number:

Campaign

Campaign:
Quantity:
0
Campaign starts:
Campaign stops:

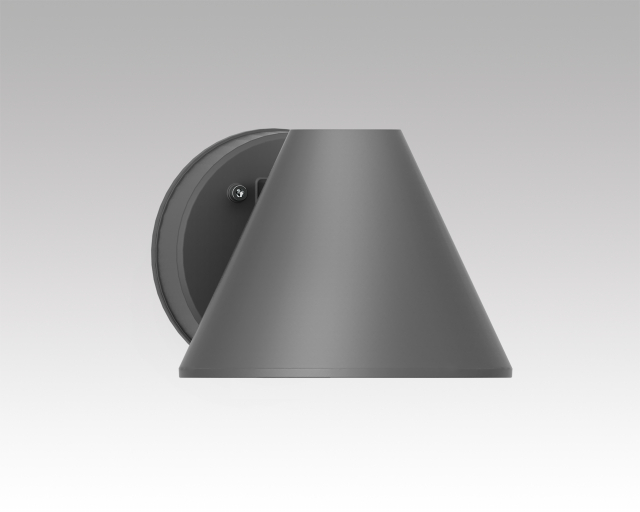

Cone-shaped wall-mounted downlight fixtures. Simple clean form hiding multiple high-performance glare-free optic choices.
  • Description
  • - Die-cast aluminium housing and frame
    - Pre-treated before powder coating ensuring high corrosion resistance
    - Two cable entries for through wiring
    - Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
    - Durable silicone rubber gasket
    - High-efficiency optical reflector
    - Clear toughened glass
    - Integral control gear
    - Optional surface mounting box for easy wiring or conduit connection when wiring from behind is not possible

  • Characteristics
  • E-nr: 7704877, 7704878, 7704879, 7704880, 7704985, 7704987, 7704988, 7704989
    Lumen: 1050, 1460, 1480, 1960, 2090, 790, 800, 980
    Power: 11 W, 18 W, 21 W
    CCT, Kelvin: 830, 840
    Weight: 3,3, 3,6
    Width: 215
    Height: 160
    MCB B10A: 31
    MCB B16A: 50
    MCB C10A: 52
    MCB C16A: 85
    Start W: 5
    Time μs: 50
  • Electrical data
  • Light distribution
  • Documents
  • Product sheet

    File light distribution

    Dimensions

airc-logo
Stocked

Accessories

Artiklelist

Show all Show less

Type Article nr Lumen Power File light distribution File light
Cinati 1000 830 AS LI102031-02 980 11
Cinati 1000 830 SY LI101031-02 790 11
Cinati 1000 840 AS LI102032-02 1050 11
Cinati 1000 840 SY LI101032-02 800 11
Cinati 1500 830 SY LI101001-02 1460 21
Cinati 1500 840 SY LI101002-02 1480 21
Cinati 2000 830 AS LI102001-02 1960 18
Cinati 2000 840 AS LI102002-02 2090 18
